1996 Ford Ranger Clutch Replacement

Okay, let’s be honest. You’re here because your 1996 Ford Ranger has started making a noise that sounds like a bag of hammers being shaken by a very angry gorilla. Or maybe your clutch pedal is now a floor-mounted decoration that does absolutely nothing. Either way, welcome to the club.

Replacing the clutch on this truck is a rite of passage. It’s like changing the oil, but with more scraped knuckles and a few choice words aimed at engineers. Don’t worry, we’ll get through this together.

Why Do We Do This To Ourselves?

First, let’s give a round of applause to the 2.3L and 3.0L engines. They are not fast, but they are indestructible—except for the clutch. The stock clutch is a delicate flower, especially after 150,000 miles of stop-and-go traffic.

You could pay a shop $1,200 to do this. But where’s the fun in that? And your wallet? It’s crying just thinking about labor rates. So, we’re doing it in your driveway on a Saturday. Perfect.

The “You’ll Need These” Shopping List

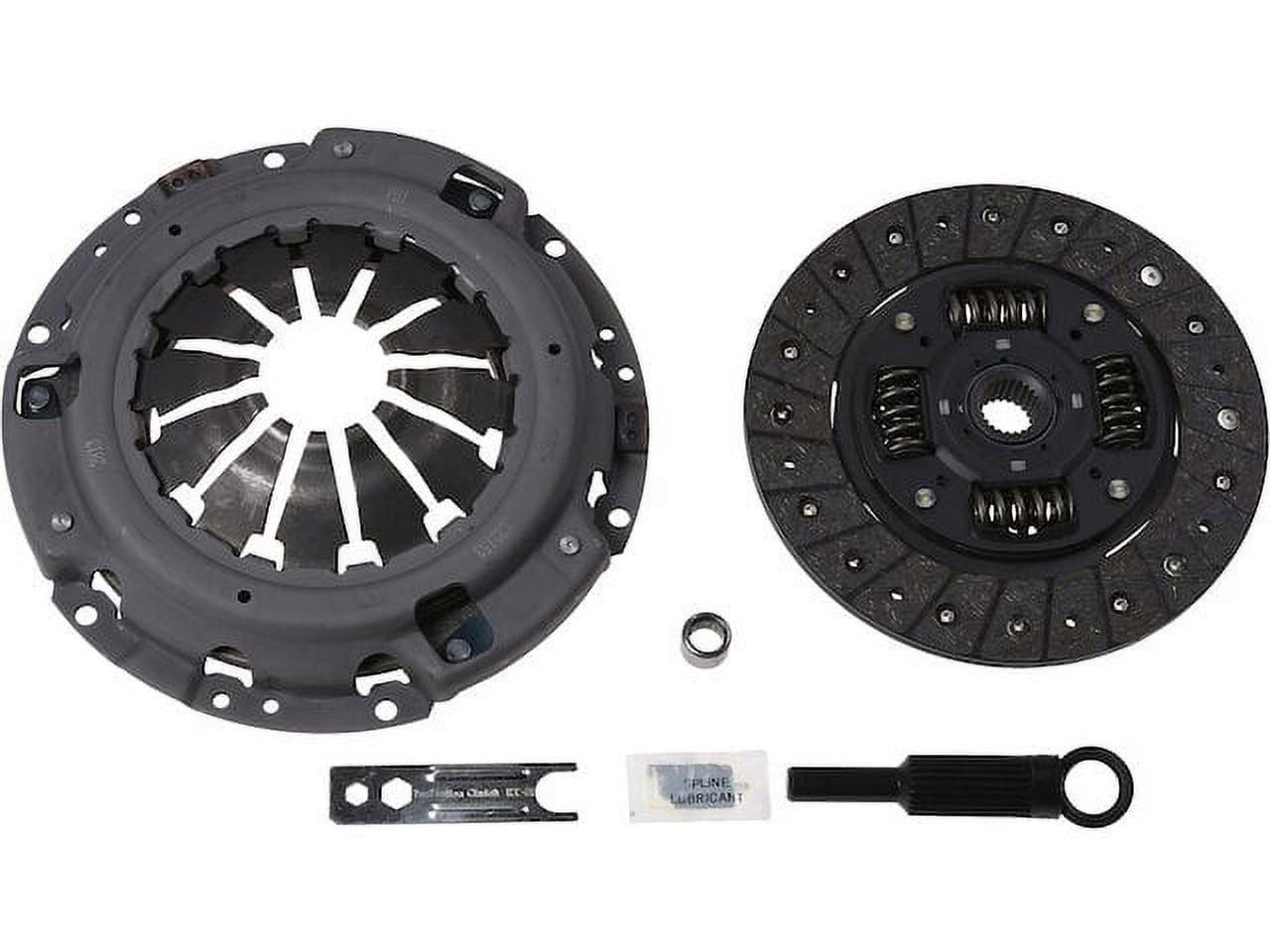

Go grab a case of your favorite soda. You’ll need caffeine and sugar. Then, get a complete clutch kit—that’strong; includes the disc, pressure plate, and throwout bearing. Don’t be cheap here; you don’t want to do this again next year.

You’ll also need a transmission jack (or a strong friend and a sturdy piece of wood), a set of deep sockets, and a breaker bar with a pipe for leverage. Trust me on that pipe. Those bolts are torqued by Thor himself.

Step One: The Disconnect Dance

Start by disconnecting the battery. Negative first, always. Then, drain the transmission fluid. It’s going to smell like a swamp, and that’s fine. All the wiring and the shifter linkage need to come off the top of the gearbox.

Now, lay under the truck and remove the driveshaft. Mark the yokes with paint so you put it back in the same spot. It’s a small detail, but future-you will appreciate the lack of vibration.

Support the transmission with your jack. Remove the bellhousing bolts—these are the ones that make you question your life choices. There are usually two on top that you will find purely by feel. It’s a game. You won’t win.

Step Two: The Heavy Lifting

Once all bolts are out, slide the transmission back until the input shaft clears the clutch. Then, lower it down slowly. This is the moment where you discover how heavy cast iron really is. It’s heavier than you think. It’s heavier than your ex’s drama.

With the trans on the ground, the clutch is right there, staring at you. Look at it. It’s worn down to the rivets. That was your problem, chief. Remove the pressure plate bolts a little at a time, in a star pattern, to release the spring tension.

Pull the old disc out. Smell it. That burnt smell is the smell of your money igniting. Say goodbye.

Putting It Back Together (The Zen Part)

Here’s the trick: you need a clutch alignment tool. It looks like a plastic stick, and it saves your sanity. Slip the new disc onto the tool, then the pressure plate, and get the bolts started. Tighten them in a star pattern, a few turns each, until snug.

Torque them to spec—I think it’s like 20 ft-lbs, but check your manual. Then, pull the tool out and do a little dance. The disc is now floating in the right position. That’s your clutch alignment done.

Now, the fun part: hauling the transmission back up. Use the jack. Don’t be a hero. Slide it forward and guide the input shaft into the disc splines. You’ll feel it “clunk” home. That clunk is the sound of victory.

The Finish Line

Bolting everything back up is the reverse of removal, but it’s always easier the second time. Reconnect the slave cylinder, the shifter, and the driveshaft. Fill the trans with fresh gear oil (like 2.5 quarts, GL-4 spec, don’t use GL-5!).

Reconnect the battery, pump the clutch pedal about 30 times, and start it up. Push the pedal, put it in first gear, and let out the clutch slowly. If the truck surges forward and doesn’t shudder, you’re a hero. If it grinds, you missed the splines. No big deal. Just go back and do it again. Seriously.

You just saved yourself like $800. Go buy a pizza. You’ve earned it. And hey, next time your Ranger talks to you in hammer-speak, you’ll know exactly what to do. You’re a certified driveway mechanic now. High five.
